'C' Frame Power Presses / Eccentric Presses

Cambia Idioma a Español
'SM' Series Presses - with Pneumatic Friction Clutch 'PP' Series Presses - with Rolling Key Clutch Power Press with Die for Washer Cutting

'SM' Series Gap Frame Precision Power Presses

Top

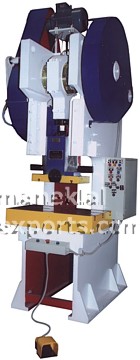

Model: SM-80		 - Pneumatic Friction Clutch and Brake dissipate heat and reduce wear

- Available in Geared and Un Geared Models

- Adjustable Stroke


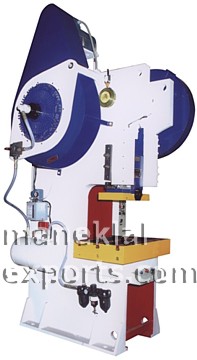

Model: SM-80

Specifications (in mm):


Model: SM-16 SM-25 SM-32 SM-40 SM-50 SM-63 SM-80 SM-100 SM-160 SM-250
Press Capacity (Tons) 16 25 32 40 50 63 80 100 160 250

SLIDE
Stroke Fixed: 63 80 80 88 88 100 125 125 160 200
Adjustable (Optional): 8 - 63 8 - 80 8 - 80 8 - 88 8 - 88 8 - 100 8 - 125 8 - 125 12 - 160 20 - 160
Adjustment of Slide: 50 50 50 63 63 63 80 80 100 125
Area LR x FB: 315 x 200 355 x 220 355 x 220 400 x 250 400 x 250 450 x 280 500 x 315 500 x 315 800 x 600 900 x 650
Shank Hole: 40 x 75 40 x 75 40 x 75 50 x 85 50 x 85 50 x 85 63 X 85 63 X 85 -- --

SPEED
Non Geared: 125 112 112 100 100 90 80 80 -- --
Geared: 63 56 56 50 50 45 40 40 35 30

DIE SPACE
Shut Height Standard: 224 250 250 280 280 315 380 380 560 600
Shut Height Optional: 315 355 355 355 355 400 560 560 To Suit To Suit
Depth of Throat Standard: 180 200 200 225 225 250 280 280 315 400
Depth of Throat Optional: 235 260 260 290 290 325 410 410 To Suit To Suit
Width of Opening in Back: 280 315 315 355 355 400 450 450 650 700

BOLSTER PLATE
Area LR x FB Standard 560 x 355 630 x 400 630 x 400 710 x 450 710 x 450 800 x 500 900 x 560 900 x 560 1100 x 630 1250 x 800
Area LR x FB Optional 710 x 450 800 x 500 800 X 500 900 X 560 900 X 560 1000 X 630 1250 X 800 1250 X 800 To Suit To Suit
Thickness: 70 75 75 80 80 85 100 100 110 125
Opening with Ring: 70 70 70 90 90 90 90 90 90 175
Opening without Ring: 180 200 200 225 225 280 315 315 325 350

BED
Opening LR x FB 224 x 180 250 x 200 250 x 200 280 x 225 280 x 225 315 x 250 355 x 280 355 x 280 450 x 355 560 x 450
Diameter: 224 250 250 280 280 315 355 355 450 560

MOTOR
Non Geared (kW): 1.50 2.20 2.20 3.70 3.70 5.50 7.50 7.50 -- --
Geared (kW): 1.50 2.20 2.20 3.70 3.70 5.50 7.50 7.50 11.00 15.00

GENERAL
Floor to Top of Bed: 800 800 800 800 800 800 900 900 900 900
Overall Height: 2450 2700 2700 2850 2850 3250 3550 3550 3900 --
Weight Non-Geared: 1350 2200 2400 3800 4200 5150 -- -- -- --
Weight Geared: 1650 2450 2650 4100 4500 5650 8250 8750 14500 20000
Inclination (Optional) 30 30 30 30 30 21 21 21 -- --

DIE CUSHION
Type: -- DDC-72 DDC-72 DDC-82 DDC-82 DDC-102 DDC-123 DDC-123 DDC-144 DDC-164
Capacity (kgs.): -- 3400 3400 4400 4400 6990 10000 10000 20000 25000
Stroke: -- 50 50 50 50 50 75 75 100 100
Pad Area LR x FB: -- 225 x -- 225 x -- 250 x -- 250 x -- 280 x -- 410 x 300 410 x 300 535 x 425 600 x 475
Required Air Pressure:  -- 7 7 7 7 7 7 7 7 7


Model: SM-160
Standard Accessories: Electricals, Control Panel, Production Counter, Bolster Plate, Shot Lubrication Device, Electro-pneumatic safety control.
Optional Accessories: Pneumatic Die Cushion, Inclinable Mechanism, Variable Stroke, Motorized Automatic Lubrication in lieu of Shot Lubrication Device, Photoelectric safety guard.


VIDEO OF ECCENTRIC POWER PRESS WITH PNEUMATIC CLUTCH MODEL: SM-80

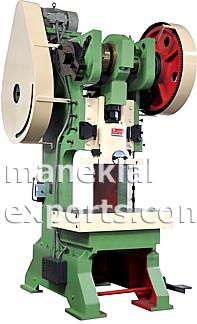

'PP' Series Steel Body Gap Frame Geared Power Presses

Top
- Frame made of a Fabricated Steel construction

- Revolving Key Clutch

- Spring operated powerful heavy duty release type Brake

- Crankshaft made of EN-8 steel

- Presses above 10 tons capacity fitted with knock-out brackets for stopping down the drawn parts

- Ram made from high tensile cast iron / cast steel

- Presses provided with Adjustable Stroke

- Flywheel made of high grade cast iron

- Available in both Fixed Body and Inclinable type

- 20, 30, 40 and 50 Tons presses are Double Geared. Rest of the presses are Single Geared

Specifications (in mm):
Model: PP-5 PP-10 PP-20 PP-30 PP-40 PP-50 PP-60 PP-75 PP-100 PP-150 PP-200 PP-250
Capacity (Tons): 5 10 20 30 40 50 60 75 100 150 200 250
Crankshaft Diameter: 51 63 76 83 95 101 108 121 134 145 160 170
Stroke Adjustment: 6 - 38 6 - 50 13 - 76 13 - 89 13 - 95 13 - 102 13 - 102 13 - 115 13 - 127 13 - 152 13 - 165 13 - 165
Max. distance - Bolster to Ram: 152 215 255 300 375 400 440 480 505 610 710 750
Slide Adjustment: 25 25 38 38 38 45 45 45 51 51 51 63
Slide Face (FB x LR): 75 x 85 101 x 260 125 x 300 145 x 335 170 x 365 210 x 380 210 x 380 240 x 430 285 x 550 315 x 600 340 x 625 360 x 700
Punch Hole (Dia.  x Deep): 25 x 38 25 x 45 32 x 50 38 x 65 45 x 76 51 x 85 51 x 85 55 x 95 63 x 102 63 x 110 63 x 110 63 x 110
Throat Distance: 102 127 152 178 203 260 280 292 318 369 420 450
Size of Table (FB x LR): 203 x 355 254 x 430 305 x 508 355 x 558 405 x 660 520 x 750 560 x 787 585 x 863 635 x 1016 737 x 1016 840 x 1118 900 x 1150
Opening in Table (dia.): 63 76 102 127 190 203 210 222 228 242 260 275
Bolster Thickness 45 60 70 70 76 76 82 89 102 102 115 127
Height of table surface from floor: 660 720 750 750 800 800 800 875 863 863 850 850
Flywheel diameter: 355 405 508 558 660 762 838 914 991 1118 1270 1320
Strokes per minute: 80 70 45 40 35 35 45 45 45 35 32 30
Motor (HP): 1 1 2 3 5 5 7.5 10 10 15 20 25
Approximate net / gross weight (Kgs.): 305 / 370 550 / 660 1010 / 1225 1425 / 1750 2050 / 2500 2650 / 3200 3000 / 3600 4500 / 5400 5500 / 6600 7500 / 9000 9000 / 10500 11000 / 13000
Machine Dimensions (m): 1.00 x 0.84 x 1.90 1.1 x 0.92 x 2.25 1.20 x 1.00 x 2.30 1.25 x 1.05 x 2.35 1.35 x 1.03 x 2.55 1.45 x 1.15 x 2.73 1.55 x 1.23 x 2.85 1.73 x 1.40 x 3.25 1.91 x 1.55 x 3.53 2.11 x 1.76 x 3.79 2.39 x 2.02 x 4.13 2.50 x 2.20 x 4.50
Shipping Volume (m3): 1.6 2.3 2.8 3.1 4.4 5.5 6.5 9.2 12.0 16.0 24.0 26.0


Standard Accessories: Electric Motor, Starter, gear and wheel guards, die clamps (4 nos.), con-rod screw spanner, extra rolling key.

Optional Accessories: Inclinable Mechanism.

Eccentric Power Press with Die for Washer Cutting

Top

Model: PP-20


Two Cavity Washer Cutting Die with Pneumatic Strip Feeder


VIDEO OF POWER PRESS PP-20 WITH 2 CAVITY WASHER CUTTING DIE WITH PNEUMATIC STRIP FEEDER
